PS-1/SAM

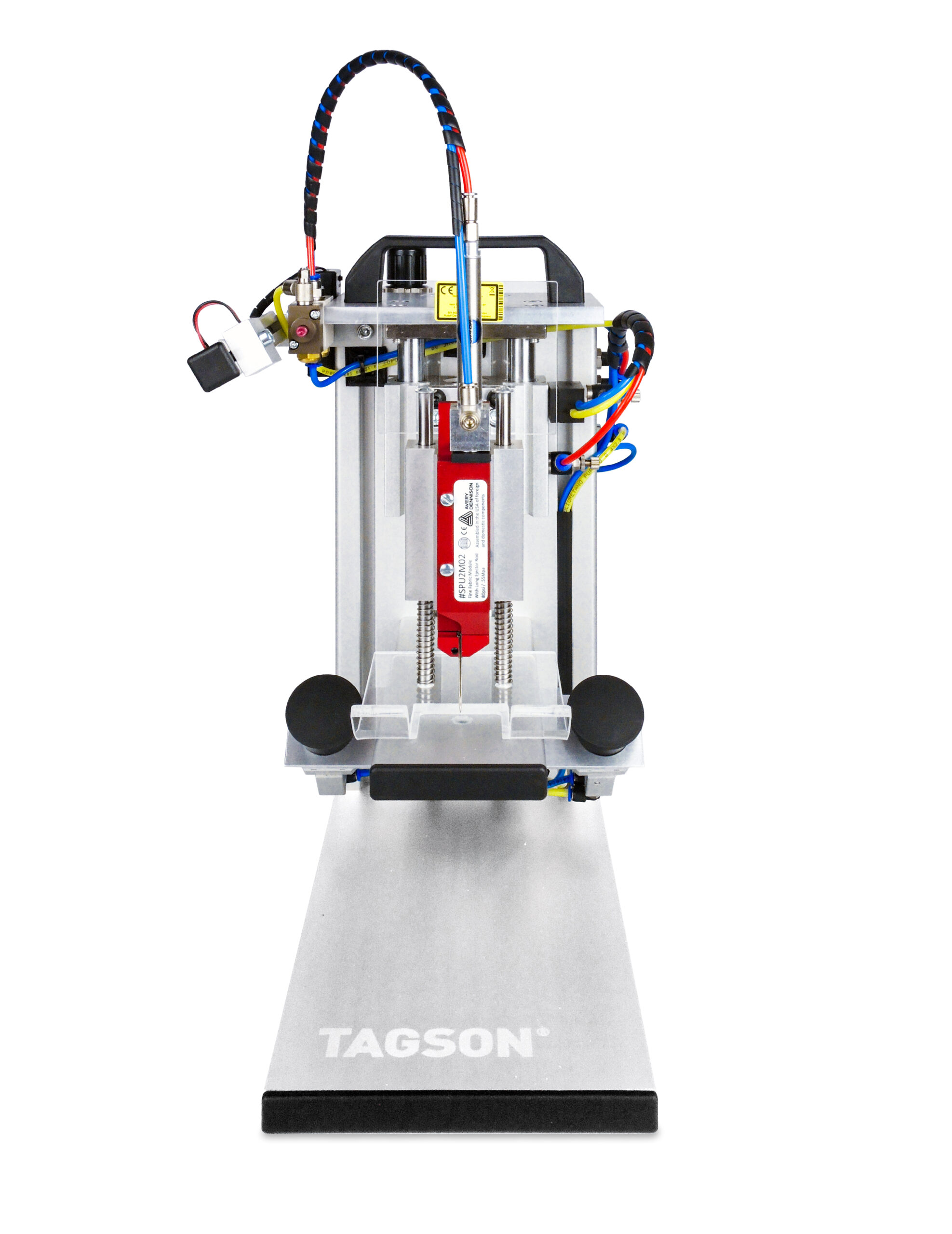

Semi automated tagging machine

Perfect solution for tagging clothes, thin socks or any other fabrics. With built-in Fine Fabric Avery Dennison module this application doesn’t damage the fabrics. Module holder and needle position can be adjusted as operator required, to assure best working conditions. PS-1/SAM can pack products with a thickness from 15 mm up to 40 mm.

The light-weight, highly portable, table top PS-1/SAM does half the work for you. By attaching fabrics on the needle by hand, the operator simultaneously presses the finger switch, which ejects the fastener trough the needle.

Each machine is made with the highest precision and tailored to end-consumer requirements. The heart of the machine is powered by an Avery Dennison SPU module which ensures the highest standard of industry quality and reliability. The main module can be changed into any other Avery Dennison module to ensure maximum efficiency. The base of the machine is carefully designed with best materials for valves, switches, hand-made axis, aluminium rack, stand and PTFE holders.

  • Universal - tag many materials

  • No oil stains or damage to product

  • Made in the EU

  • Save time and energy

  • Increase productivity

  • Only air supply needed

  • 6 months warranty with CE

For tagging

Speed: 1.5 seconds/cycle (two fasteners)

Thickness range: 15 mm – 40 mm



Features

Premium SWISS MADE needle

PS-1/SAM has a FINE needle made in Switzerland. These needles are made from premium steel and are number 1 needles in the world.

Light-weight and portable

PS-1/SAM is small, light-weight (1 kg) and easy to carry around.

Energy saving

Only air supply is required to operate the machine. None of the Tagson machines need electricity and are energy-saving.

Video

Benefits

3x faster

PS-1/SAM can greatly improve your tagging process. A comparison between tagging different products with a manual tagging gun and the semi automated pneumatic machine PS-1/SAM shows a 3 times increase in productivity per hour.

One machine – different solutions

Install any of the Avery Dennison® pneumatic modules to pack all kinds of products and thicknesses. All Tagson machines can be upgraded with other types of modules and applications.

User-friendly

Our engineers have designed a user-friendly machine, easy to operate and maintain. No special training is needed and all maintenance can be done by your staff. No worries – our online service centre is ready to help you 24/7.

European Quality

Tagson machines are built with best quality valves, switches, hand-made axis, aluminium racks and stand, PTFE holders, etc. All parts as well as the machine itself have the CE certificate and are Made in Europe from finest premium materials.

Technical specifications

Tagging application: Yes
Module: Avery Dennison Swiftach SPU2M02
Operating pressure: Air supply, 80 psi (6 bar)
Overall needle length: needle type optional
Effective length: needle type optional
Tagging thickness range: 15 mm – 40 mm
Type of pins/fasteners: Fine Fabric Nylon fasteners or PP
Max speed: 1.5 seconds/cycle
Height adjustments: Yes
Needle adjustments: Yes
Laser marker: No
Foot pedal: No
Needle plate compression: No
Machine dimensions: 400 x 160 x 320 mm
Weight: 1 kg

SAM tagging machine big

Custom made for you

Each machine we make is prepared individually. This is how we can find the best solution for your packaging production process. Contact us with what suits you best and we will find the right solution for you.

free-testing-image

Free testing

If you would like to receive a free sample of your product packed with our machines, contact us and we will prepare a free presentation. Let our engineers lead you trough the process of free testing.
